Clutch & Flywheel Kit, South Bend Stage 2 Daily 02Q TDI DMF

From $1,299.00

South Bend Clutch, SBC Clutch, SBC Stage 2 endurance, 02q tdi clutch kit, south bend, mk6 clutch, mk7 clutch, DMF123, K70468-HD-OCE , K70468, K70468-HD, K70468-HD-O

SKU: K70468-HD-O | DMF123 Categories: , , Tags: , , , Brand:

Description

South Bend stage 2 daily clutch kit with flywheel for 02Q TDI 6-speed transmissions with dual mass flywheel. The 02Q TDI requires a dual mass flywheel. The steel synchros in the 02Q don’t handle the vibrations of single mass flywheels. Stick with a dual mass, otherwise you will destroy your transmission.

South Bend modifies this with a performance pressure plate paired with a heavy duty organic disc. The friction material is a high metal content Organic lining. Engagement is the same as a factory clutch.

South Bend Clutch, Inc. has very specific warranty requirements. We strongly recommend reading their policy in its entirety prior to purchase. Please see the note and link below.

Torque Rating:
395 lb/ft

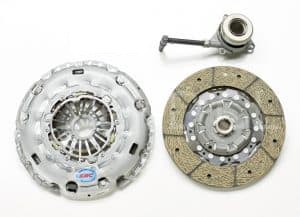

Kit Includes:
LuK Dual Mass Flywheel (not pictured)
Clutch Disc
Pressure Plate
Throwout Bearing
Alignment Tool
6x Flywheel Bolt N90665001
6x Pressure Plate Bolt N90320701

Fits the Following:
2009-2015 Jetta TDI
2012-2015 Golf TDI
2012-2015 Beetle TDI
2015 Passat TDI


Installation Note: Make sure you bleed the slave cylinder BEFORE installing it to get all the air bubbles out! It’s a bench-bleed sort of thing, this makes sure that the slave will start with some fluid in it and the most difficult to remove air pockets already pushed out. You do still do the normal bleed procedure as well once everything is bolted into the car, but doing the bench-bleed before bolting the slave in makes it considerably easier to do the final bleed once everything is assembled.

You can compress the throwout bearing with one hand, with the 90 degree neck pointing up, pour a little brake fluid into it, then release the T.O. bearing. This will pull the fluid in. Tip it upright as it would normally sit in the transmission and slowly compress the throw out bearing again, tip it so you can fill some more easily, repeat a few times until it seems like you’ve got as much fluid into it as you can, then go ahead and bolt it into the transmission.

Warranty Details:ย This product comes with a 12-month, 12,000 mile warranty against defects. This warranty is void unless certain criteria are met, including that the kit be purchased at or above their Minimum Advertised Price (MAP) and that it be installed with a new or resurfaced flywheel. The product must be registered with the manufacturer within 30 days of purchase. A warranty card should be enclosed with the product, or an online warranty registration can be foundย here. For the full warranty policy of South Bend Clutch, Inc., please followย this link.

Additional information

Weight 38.55 lbs
Dimensions 15 × 13 × 7 in
